Optical to 1PPS / IRIG-B Distribution Solution
Introduction

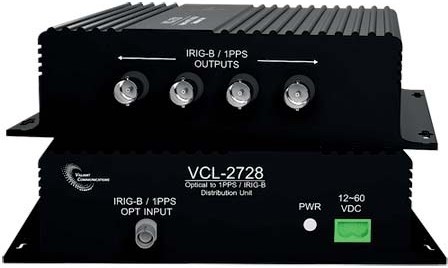

VCL-2728, Optical to 1PPS (Pulse Per Second) / IRIG-B Distribution Solution is a compact and cost-effective solution to convert “Optical 1PPS / IRIG-B Input” to 4 x 1PPS / 4 x IRIG- B Outputs (BNC). The VCL-2728 must be used in conjunction with either VCL-2486-G or with VCL-2486-I to distribute IRIG- B or 1 PPS signals over 850nm Multi-Mode Optical Fiber links.
Block Diagram

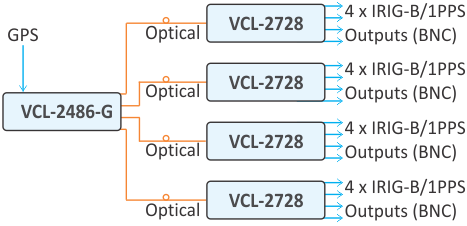

Application Diagram #1

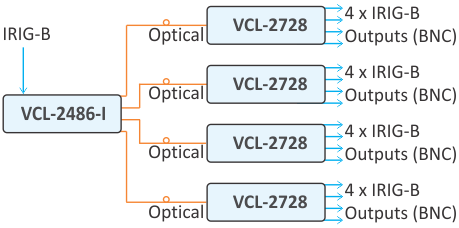

Application Diagram #2
Features and Highlights
Features and Highlights
- Nanosecond Time Accuracy to Optical 1PPS / IRIG-B Input
- Transparent to Optical 1PPS / IRIG-B Input. Output shall be synchronized to the Input
- Up to 4 x IRIG-B / 1PPS Outputs
- DC or AC Power Supply options.
Inputs (VCL-2728):
| Inputs | Number of Inputs | Connector |
| 1 PPS Pulse | 1 (Optical) | ST |
| IRIG-B | 1 (Optical) | ST |
Synchronized Outputs (VCL-2728):
| Outputs | Number of Outputs | Connector |
| IRIG-B / 1 PPS Output (BNC) | 4 | BNC |
Technical Specifications
Core unit / Chassis
| Core Unit | Number of Interfaces | Connector |
| Input Power Supply, DC (24V / 48V) | 1 | 2 PIN DC Power Connector |
| Input – Optical 1 PPS / IRIG-B | 1 | ST |
| Output – 1 PPS / IRIG-B (BNC) | 4 | BNC |
Power Consumption:
- < 10W at ambient (steady state 24°C)
Power Supply Options:
- DC (24V DC, 48V DC
- AC (100V AC to 240V AC, 50/60 Hz)
- 110V DC to 220V DC)
Environmental (Equipment):
- Operational: -10°C to +60°C (Typical: +25°C)
- Cold start: 0°C
- Storage: -20°C to +70°C
- Humidity: 95% non-condensing
- Cooling: Convention Cooled. No cooling fans are required.
Standards & Compliance:
- IEC – EMC – Certified to EN 55022: 2005 / CISPR 22 Class A, EN 55024:2005, IEC 61000-4-2
- CE – 2001/95/EC, 2006/95/EC, EN60950-1, EN61000-6-2, EN61000-6-4
- FCC – FCC Part 15 Class A: Conducted Emission test on Power Line
- FCC Part 15 Class A: Radiated Emission >1 GHz FCC, 6 GHz, on Power Line.
